Product Name :
Brushless MotorPacking :
CartonRated Voltage :
12VRated Power :
15WRated Current :
0.6ARated Torque :
0.015 g.cmLead time :
10 daysRated Speed :
4500 rpm

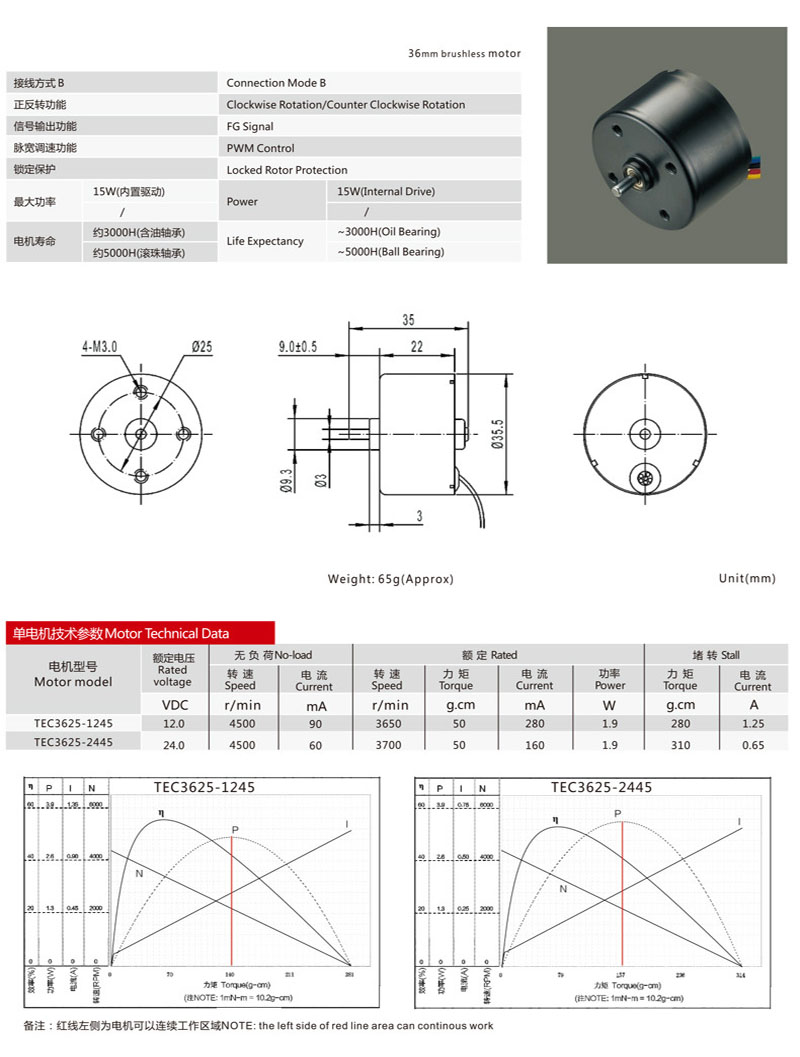

| Description： | 3325 Motor |
| Current Type: | DC |
| Length: | 36mm |
| Diameter: | 25mm |
| Operating Voltage: | 12-24V |
| Rotation: | CW(clockwise) or CCW(contary clockwise) |
| Application: | Dishwasher, electric baking pan |
| Weight: | 65g |
| Certificate: | ROHS |
Micro DC brushless motor, this model has a dual end ball bearing structure, ultra long service life, low noise operation, and the drive can be built-in or external. It can be used directly or equipped with a gear reducer for low-speed use. Voltage, speed, and shaft extension dimensions can be customized according to customer requirements.
If you have questions or suggestions, please leave us a message, we will reply you as soon as we can!
