Product Name :
Stepper MotorPacking :
CartonRated Voltage :
12VRated Power :
12/15/18 WRated Current :
1.5ARated Torque :
0.13-440 g.cmLead time :
10 daysRated Speed :
1500 rpm
| Description： | Stepper motor |
| Step Angle： | 1.8°±0.09° |
| Phase: | 2 |
| DC cold resistance | 4x(1±10%)Ω/phase |
| Line inductance: | 8x(1±20%)mH/phase |
| Maximum holding torque: | ≥130mN.m (REF) |
| Positioning torque: | ≥13mN.m (REF) |
| Insulation resistance: | ≥100MΩ（DC500V） |
| Insulation class: | B |
| Moment of inertia | 20g.cm² |

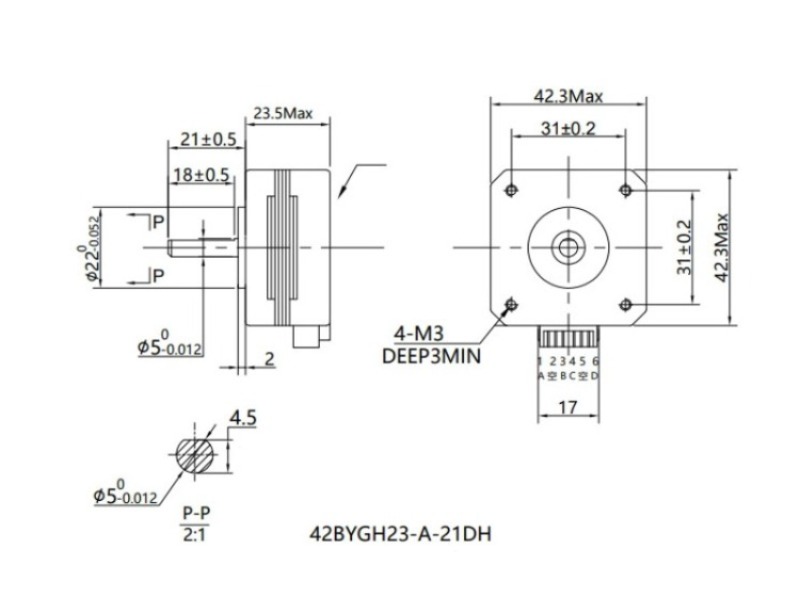

42 series micro stepper motor 1. Strict control of accuracy, high accuracy of inner holes, stable and accurate speed during operation without losing step. 2. Emergency stop locking, precise control. 3. The internal rotor is coated with rotor adhesive on the surface to avoid burrs on the surface of carbon steel after oxidation and grinding, resulting in increased motor noise.
57 Stepper Motor 1.Spray molded body, dustproof and waterproof. 2.360 degrees sealed 3.Effectively control scalding and fever.
Special material of rotor does not get stuck The rotor surface is coated with imported epoxy resin adhesive to eliminate burrs on the rotor surface. The motor has a more stable magnetic field, larger torque compared to similar products, smoother and more stable motor operation, lower noise, and longer service life.
