Product Name :
Gear MotorPacking :
CartonRated Voltage :
4.5VRated Power :
0.03 WRated Current :
0.05ARated Torque :
8.15 g.cmLead time :
10 daysRated Speed :
6 rpm
| Description： | Gear Motor |
| Size： | 35.8x(80.0+L)mm |
| Reduction ratio: | 180/380 |
| MOQ: | 1000pcs |
| Operating Voltage: | 3-12V |
| Rotation: | CW(clockwise) or CCW(contary clockwise) |
| Application: | Ice cream maker |
| Weight: | 20g |
| Certificate: | ROHS |
Micro gear reducer adopts high precision gear, and equipped with oil seal, O-ring sealed gear box, using grease bath moistening method, with low noise, long service life, small volume, large power and so on. The deceleration range is wide, and can also be made separately according to the user's special requirements for speed. Widely used in machinery, filling machinery and chemical machinery and other manufacturing industries.
We can provide various motors according to your requirements, including Brushed motor, Brushless motor, DC motor and AC motor
Motors are used for chargers, electric curtains, electronic locks, medical equipment, etc

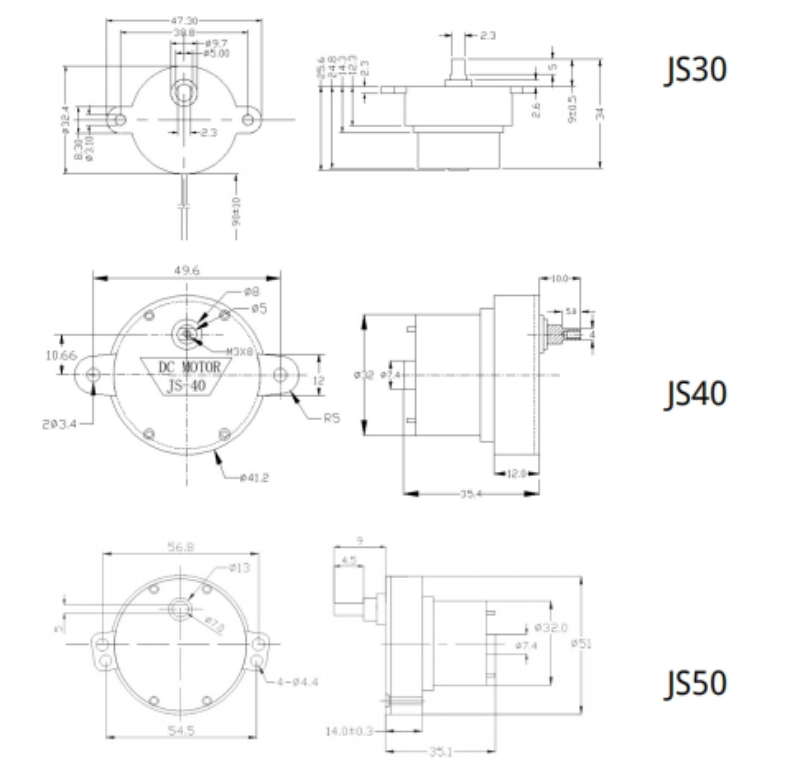

JS30 typical applications: Lawn light; Colorful rotating lights; Crystal magic ball lights; Adult supplies; Showcase; Toys; Actuators, etc.
