Product Name :
Flat Brushed DC Motor 1027Packing :
CartonRated Voltage :
3 VRated Power :
0.02 WRated Current :
0.8 ARated Torque :
0.001NmLead time :
15-20 daysRated Speed :
12000 rpm

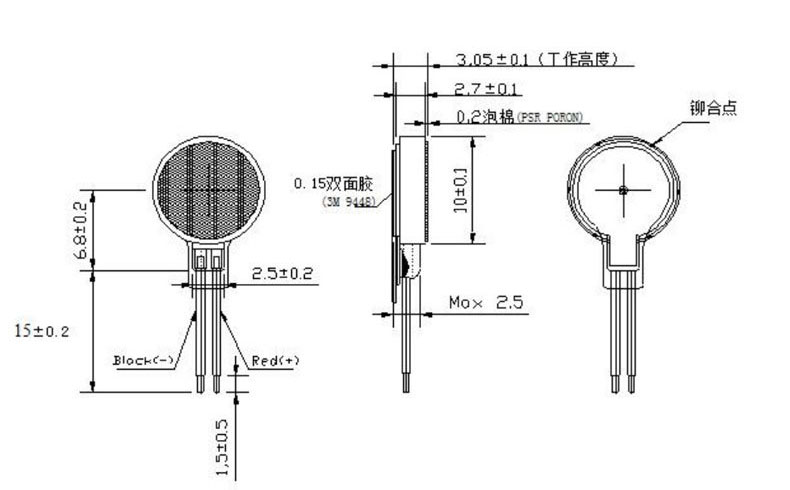

| Description： | Flat Brushed DC Motor |
| Thickness： | 2.7mm |
| Diameter: | 10mm |
| Starting Voltage: | 2.3V DC Max |
| Operating Voltage: | 2.3-4V |
| Rotation: | CW(clockwise) or CCW(contary clockwise) |
| Strating Current: | 120mA Max |
| Operating Environment: | -20℃~+60℃ Ordinary Humidity |
| Storage Environment: | -30℃~+70℃ Ordinary Humidity |
We can provide more specifiaction flat motors: 0720,0827,0820,0830,0834,1034,1234,1027,1030,1020,1030, etc.
We can provide more specifiaction flat motors: 0720,0827,0820,0830,0834,1034,1234,1027,1030,1020,1030, etc.
We can provide various motors according to your requirements, including Brushed motor, Brushless motor, DC motor and AC motor
We can provide more specifiaction flat motors: 0720,0827,0820,0830,0834,1034,1234,1027,1030,1020,1030, etc.
If you have questions or suggestions, please leave us a message, we will reply you as soon as we can!
