Product Name :
Flat Brushed DC Motor 0820Packing :
CartonRated Voltage :
3 VRated Power :
0.1 WRated Current :
0.8ARated Torque :
0.01 NmLead time :
10 daysRated Speed :
12000 rpm
| Description： | Flat Brushed DC Motor |

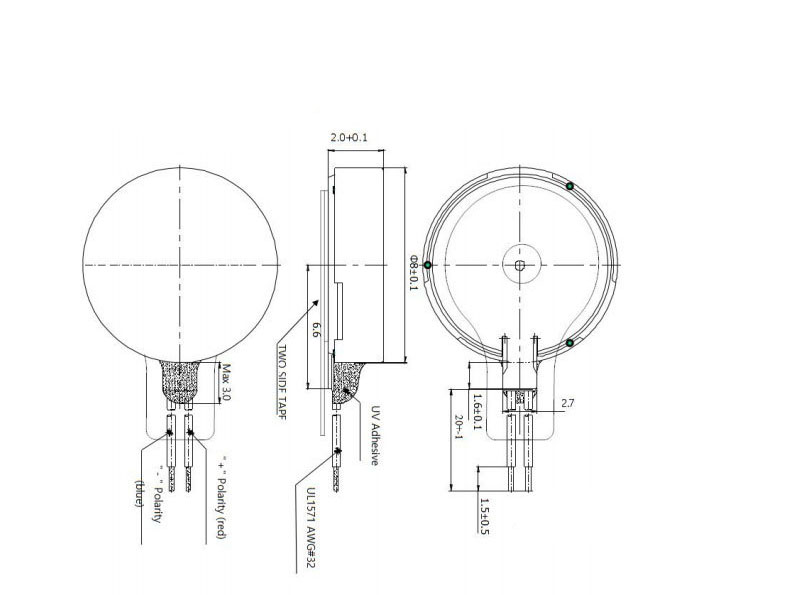

| Thickness： | 2.0mm |
| Diameter: | 8mm |
| Starting Voltage: | 2.3V DC Max |
| Operating Voltage: | 2.5-4.0V |
| Rotation: | CW(clockwise) or CCW(contary clockwise) |
| Strating Current: | 100mA Max |
| Operating Environment: | -20℃~+70℃ Ordinary Humidity |
| Storage Environment: | -30℃~+80℃ Ordinary Humidity |
We can provide more specifiaction flat motors: 0720,0827,0820,0830,0834,1034,1234,1027,1030,1020,1030, etc.
We can provide more specifiaction flat motors: 0720,0827,0820,0830,0834,1034,1234,1027,1030,1020,1030, etc.
We can provide various motors according to your requirements, including Brushed motor, Brushless motor, DC motor and AC motor
We can provide more specifiaction flat motors: 0720,0827,0820,0830,0834,1034,1234,1027,1030,1020,1030, etc.
